General Random PackingIRREGULAR PACKINGS

General Random Packing

Physical Data

25M‐L(25mm)4323619297

Packing type
Packing type
Size
Size
Packing
factor
F(l/ft)
Packing
Density
(kg/m³)
Surface
(m²/m³)
Void
Fraction
(%)
Raschig ring
Raschig ring
1/2″(12mm) 300 638 401 92
5/8″(15mm) 260 592 366 91
1″(25mm) 137 480 200 94
1 1/2 ″(38mm) 83 423 130 95
2″(50mm) 57 329 102 96
3″(80mm) 32 286 70 96
Pall ring
Pall ring
1/2″(12mm) 81 638 415 92
5/8″(15mm) 71 592 366 91
1″(25mm) 48 480 210 94
1 1/2 ″(38mm) 28 423 136 95
2″(50mm) 20 329 110 96
3″(80mm) 286 73 96
MM-PAK®
M-PAK

※ MM-PAK® is one of M series and our product registered trademark.

38M‐L(38mm) 26 170 140 98
51M‐L(51mm) 19 140 99 98
MI-PAK®
MⅠ-PAK

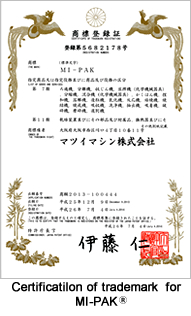

※ MI-PAK® is one of M series and our product registered trademark.

MI-♯15(15mm) 51 355 292 96
MI-♯25(25mm) 41 356 210 97
MI-♯40(38mm) 24 255 151 97
MI-♯50(50mm) 18 165 98 98
MI-♯70(70mm) 12 120 56 98
Ex. materials:
SUS304、SUS304L、SUS316、SUS316L
※ Please feel free to contact us about special metal

PLASTIC RANDOM PACKING

Physical Data
Packing type
Packing type
Size
Size
Packing
factor
F(l/ft)
Packing
Density
(kg/m³)
Surface
(m²/m³)
Void
Fraction
(%)
Raschig ring
Raschig ring
1″(25mm) 137 112 205 86
1 1/2 ″(38mm) 83 70 130 90
2″(50mm) 57 68 95 92
Pall ring
Pall ring
5/8″(15mm) 95 110 340 83
1″(25mm) 52 100 205 90
1 1/2 ″(38mm) 32 66 130 91
2″(50mm) 25 63 100 92
Intalox saddle
Intalox saddle
1″(25mm) 33 76 206 91
1 1/2 ″(38mm) 25 57 140 91
2″(50mm) 21 64 108 93
Super Intalox saddle
サドル
Super Intalox saddle
1″(25mm) 33 96 210 90
1 1/2 ″(38mm) 25 60 145 91
2″(50mm) 21 68 110 93

Ex. materials:
1)PP(s.g., 0.9)

2)HRPP(s.g., 0.9)

3)UPVC(s.g., 1.04)

4)CPVC(s.g., 1.56)

5)PVDF(s.g., 1.75)

6)ETFE(s.g., 1.74)

7)PFA(s.g., 2.17)

Bulk density is displayed in specific gravity (1.0)

CERAMIC RANDOM PACKING

Physical Data
Packing type
Packing type
Size
Size
Packing
factor
F(l/ft)
Packing
Density
(kg/m³)
Surface
(m²/m³)
Void
Fraction
(%)
Raschig ring
Raschig ring
1″(25mm) 155 620 235 78
1 1/2 ″(38mm) 103 580 195 76
2″(50mm) 65 530 150 81
3″(80mm) 37 870 110 68
Intalox saddle
Intalox saddle
1″(25mm) 98 620 250 74
1 1/2 ″(38mm) 52 610 164 75
2″(50mm) 40 600 142 76
3″(80mm) 22 560 92 78
Super Intalox
saddle
Super Intalox saddle
1″(25mm) 60 600 260 74
2″(50mm) 30 560 140 76
3″(80mm) 15 510 120 77
Cross ring
Cross ring
φ100 1100 105 53
φ120 1040 90 55
φ150 1040 72 58

Bulk density is displayed in specific gravity of general material of ceramics

Chemical Physicality lis(t %)
SiO2 Al2O3 Fe2O3 MgO CaO K2O Na2O Leachable iron
68-72 18-22 ≦1.0 0.6 0.6 3.5-4.5 0.1-0.3 <0.01
