MC Pack / DistributorMC PACK

We provide a general separating type or a general sheet type of MC Pack, and other types for use such as water-use, high-vacuum, high-precision separation, and test plant etc. Furthermore, MC Pack can be divided, depending on the radius of a column or its packing system, into two types: all-in-one type or segmented type.

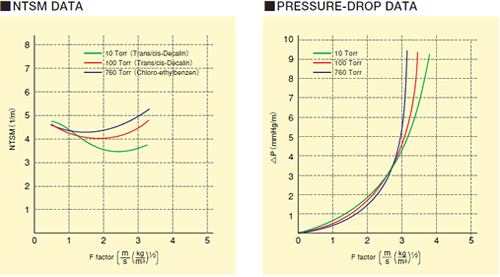

Sheet MC250S

MC250S

Sheet 250S can be used in any environmental from low to high gas load(F factor). Pressure drop is low and NTSM is high due to its embossed decoration over the surface of the sheet layer.
Especially, MC250S can achieve high NTSM and very low pressure drop in a high-load environment under the ordinary pressure.
【CHARACTERISTICS】
High NTSM
Pressure drop for single theoretical step —
0.1 to 1 mmHg
Proper liquid load range — 0.2 to 60m³/m²H
Maximum F factor — 3.0

Name Surface
m²/m³
m²/m³
Void
space%
Weight
kg/m³
Height per
mm
Substance
MC250S 250 98 87 180 Sheet

Bulk Density at a material specific gravity 7.93 for stainless steel type 304.

Ex. Materials:
SUS304, SUS316L, SUS329J4L, Titanium, Hastelloy, Aluminum, Nickel, Copper

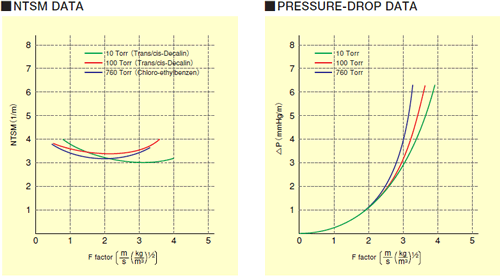

Sheet MC350S

MC350S

Sheet 350S like the sheet 250S can be used in the environment from low to high gas load(F factor).
Performance is steadily high due to its embossed decoration over the surface of the sheet layer.
Note that sheet 350S can achieve high NTSM and very low pressure drop in a high-load environment under the ordinary pressure.

【CHARACTERISTICS】
High NTSM
Pressure drop for single theoretical step —
0.1 to 1 mmHg
Proper liquid load range — 0.2 to 30m³/m²H
Maximum F factor — 2.5

Name Surface
m²/m³
Void
space
Weight
kg/m³
Height per
mm
Substance
MC350S 350 98 120 183 Sheet

Bulk Density at a material specific gravity 7.93 for stainless steel type 304.

Ex. Materials:
SUS304, SUS316L, SUS329J4L, Titanium, Hastelloy, Aluminum, Nickel, Copper

Sheet MC500S

MC500S

Sheet 500S can be used in the environment from low to high gas load(F factor), and achieve overall high NTSM due to its unique structure design.
Note that sheet 500S can achieve high NTSM and very low pressure drop in a high-load environment under the ordinary pressure.
【CHARACTERISTICS】
High NTSM
Pressure drop for single theoretical step —
0.1 to 1 mmHg
Proper liquid load range — 0.2 to 20m³/m²H
Maximum F factor — 2.0

Name Surface
m²/m³
Void
space
Weight
kg/m³
Height per
mm
Substance
MC500S 500 97 170 178 Sheet

Bulk Density at a material specific gravity 7.93 for stainless steel type 304.

Ex. Materials:
SUS304, SUS316L, SUS329J4L, Titanium, Hastelloy, Aluminum, Nickel, Copper

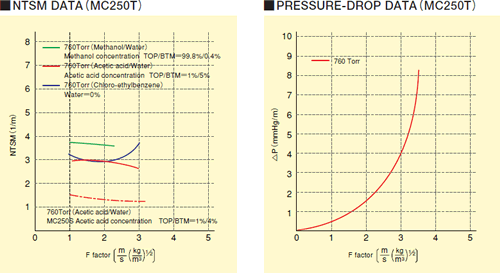

Mesh-Sheet-Mesh MC250T/350T/500T

MC250T/350T/500T

250T type consists of three layers: metal mesh layer, sheet layer, and metal mesh layer. Using 250T type, water with a high surface tension can spread well and maintain a suitable gas-liquid contact surface.
Structured Packing is usually ineffective for use with water with a high surface tension but 250T can properly maintain a liquid hold and liquid-gas surface, achieving a low pressure drop and high NTSM. 250T can be used in a wide range of environments from low to high load. It also achieves steady, high NTSM.
【CHARACTERISTICS】
High NTSM under water-use
(over 40 dyne/cm of surface tension)
Pressure drop for single theoretical step —
0.1 to 1 mmHg
Proper liquid load range — 0.2 to 70m³/m²H
Maximum F factor — MC250T: 3.0
MC350T:2.5
MC500T:2.0

Name Surface
m²/m³
Void
space
Weight
kg/m³
Height per
mm
Substance
MC250T 250 97 171 182 Mesh-Sheet-Mesh
MC350T 350 227 183 Mesh-Sheet-Mesh
MC500T 500 293 178 Mesh-Sheet-Mesh

Bulk Density at a material specific gravity 7.93 for stainless steel type 304.

Ex. Materials:
SUS304、SUS316L
